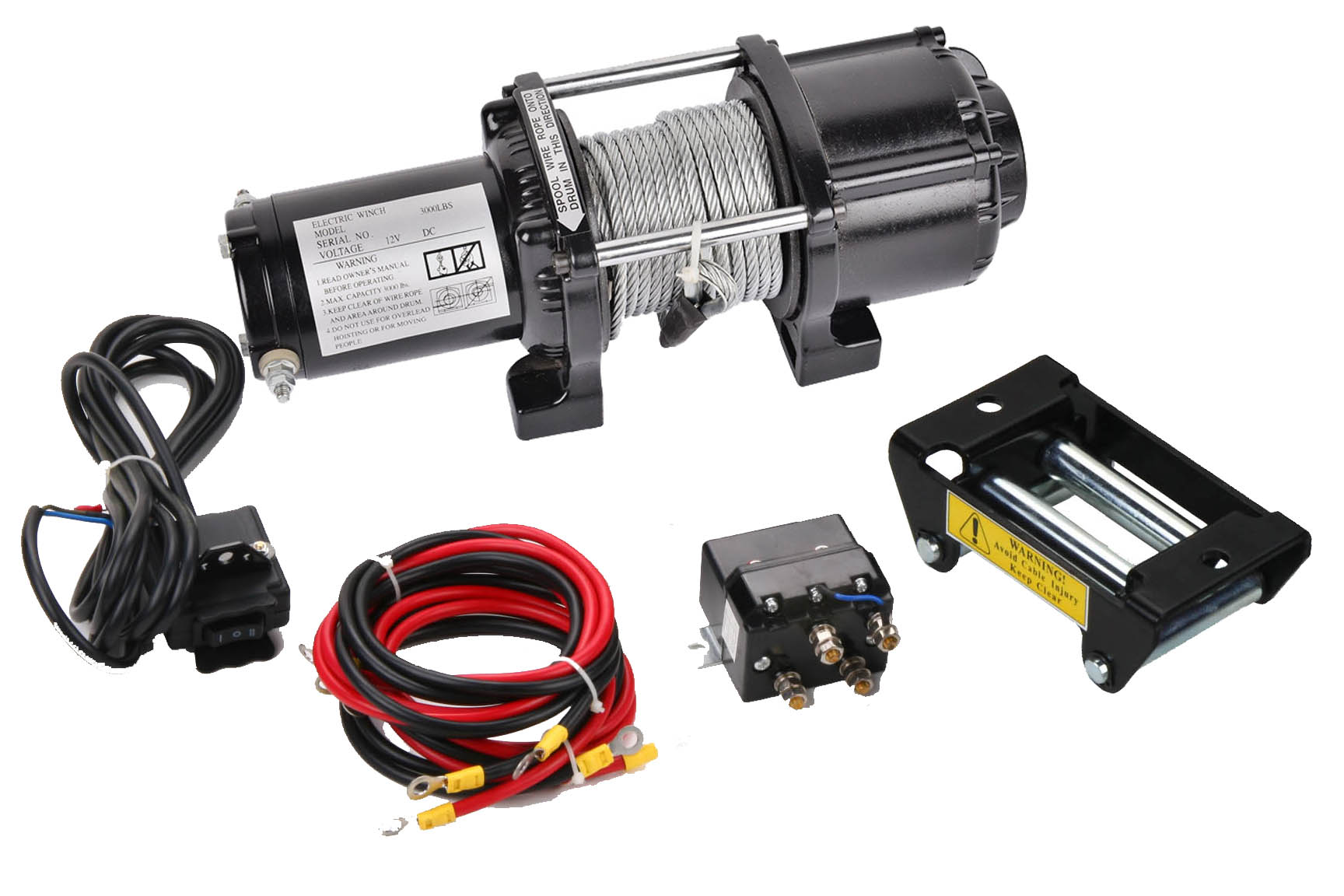

3000LB, WINCH SPECIFICATIONS
|
Rated line pull |
3000lbs(1361kgs) single line |
|
Motor |
Permanent magnet, 1.0kw/1,34hp |
|
Gear reduction ratio |
135 : 1 |
|
Gear train |
3 Stage Planetary |
|
Cable (Dia x L) |
Diamete0.19”(4.8mm)Length34.4’(10.5m) |
|
Control |
Remote switch |
|
Drum size (Dia x L) |
Dimaete2.0”(51mm)Length2.9”(74mm) |
|
Clutch |
Sliding Ring Gear |
|
Braking action |
Automatic In-The-Drum |
|
Overall dimensions(L X W X H) |
13.4” X 4.3” X 4.4”(340mm X 110mm X 112mm) |
|
Mounting bolt pattern |
120mm*76mm,Ø9 |
|
Weight |
N.W.10kg G.W.11KG |
|
Packing size |
410mmx340mmx210mm 1PC/CTN |
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
9.5(2.9) |
10 |
|
1000(454) |
8.5(2.6) |
25 |
|
2000(907) |
7.2(2.2) |
64 |
|
3000(1361) |
5.2(1.6) |
150 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
3000(1361) |
5.6(1.7) |
|
2 |
2320(1052) |
15.1(4.6) |
|
3 |
1890(857) |
19.7(6.0) |
|
4 |
1590(721) |
27.9(8.5) |
|
5 |
1290(585) |
34.4(10.5) |
