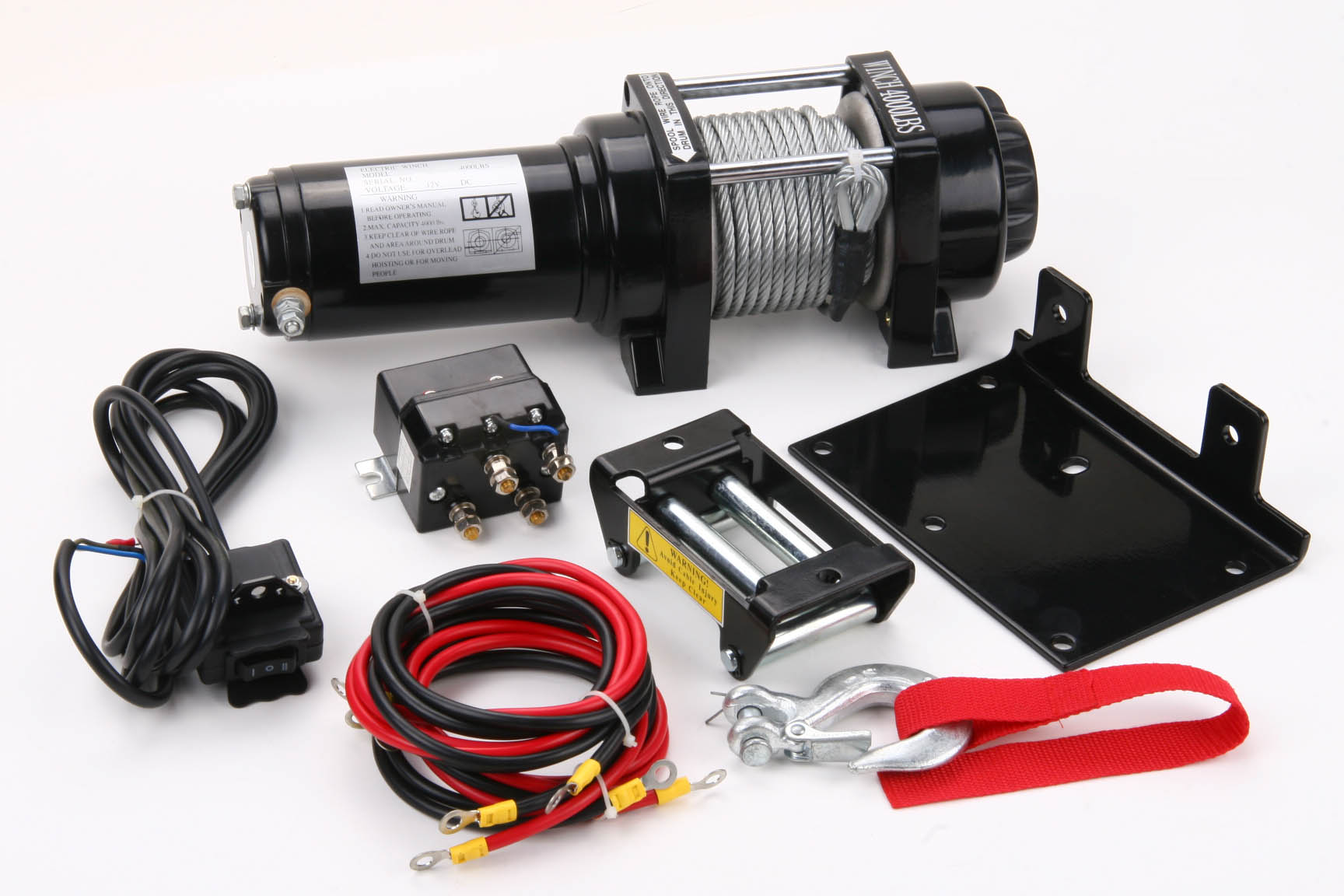

4000LB, WINCH SPECIFICATIONS
|
Rated line pull |
4000lbs (1814kgs)single line |
|
Motor |
Permanent magnet, 1.3kw/1.8 hp |
|
Gear reduction ratio |
135:1 |
|
Gear train |
3 Stage Planetary |
|
Cable (Dia x L) |
Diamete0.21¡±(5.4mm)Length41.3¡¯(10.5m) |
|
Control |
Remote switch |
|
Drum size (Dia x L) |
Dimaete2.0¡±(51mm)Length2.9¡±(74mm) |
|
Clutch |
Sliding Ring Gear |
|
Braking action |
Automatic In-The-Drum |
|
Overall dimensions(L X W X H) |
13.4¡± X 4.3¡± X 4.4¡±(353mm X 110mm X 112mm) |
|
Mounting bolt pattern |
120mm*76mm,Ø9 |
|
Weight |
N.W. 10 kg G.W. 12 kg |
|
Packing size |
410mmx350mmx210mm 1PC/CTN |
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
9.5(2.9) |
26 |
|
1000(454) |
8.5(2.6) |
64 |
|
2000(907) |
7.2(2.2) |
98 |
|
3000(1361) |
5.2(1.6) |
148 |
|
4000(1814) |
3.6(1.1) |
170 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
4000(1814) |
4.9(1.5) |
|
2 |
3250(1474) |
14.4(4.4) |
|
3 |
2200(998) |
19(5.8) |
|
4 |
1700(771) |
26.6(8.1) |
|
5 |
1600(726) |
34.4(10.5) |
