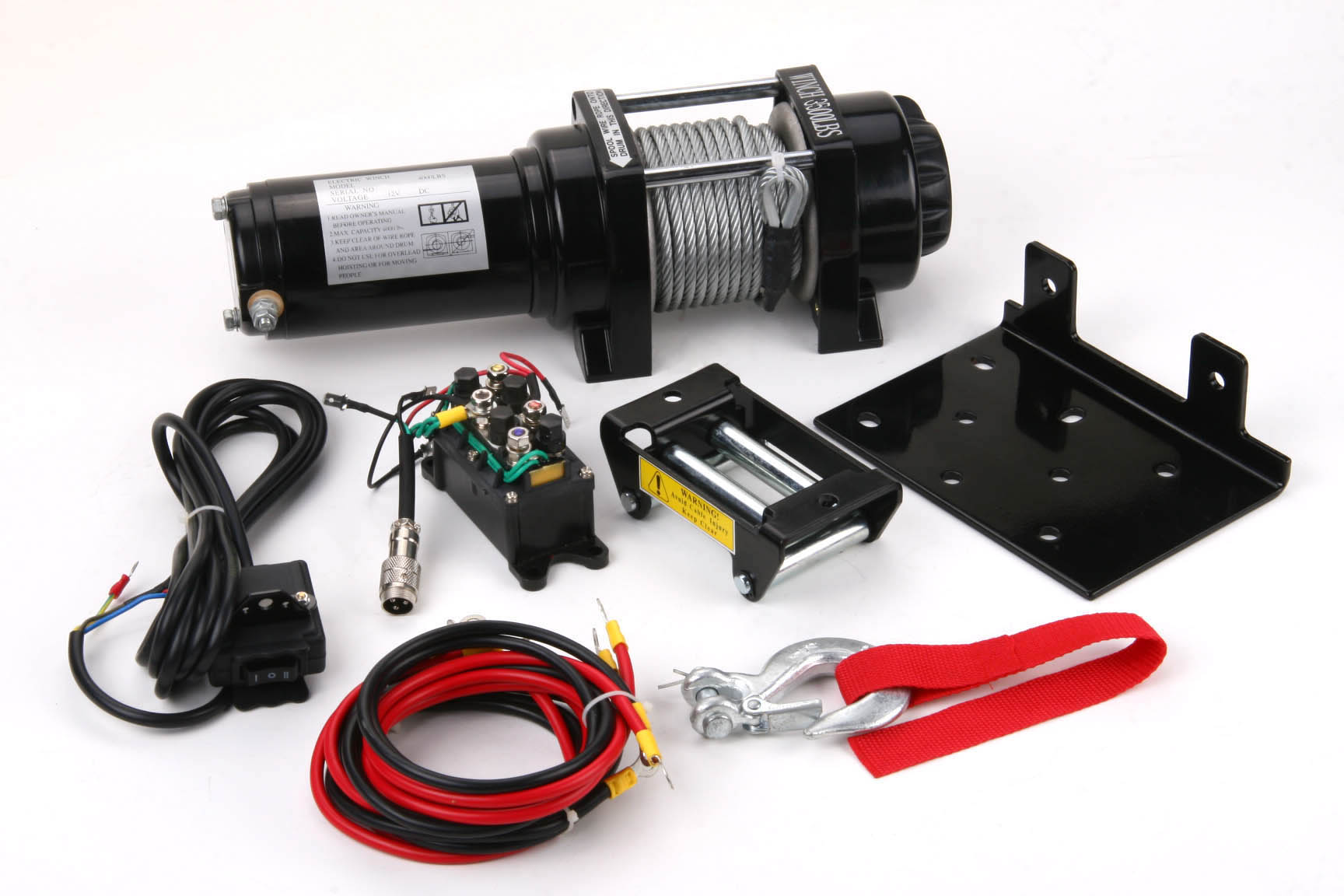

3500LB, WINCH SPECIFICATIONS
|
Rated line pull |
3500lbs(1588kgs) single line |
|
Motor |
Permanent magnet, 1.2kw/1,4hp |
|
Gear reduction ratio |
135:1 |
|
Gear train |
3 Stage Planetary |
|
Cable (Dia x L) |
Diamete0.19¡±(4.8mm)Length34.4¡¯(10.5m) |
|
Control |
Remote switch |
|
Drum size (Dia x L) |
Dimaete2.0¡±(51mm)Length2.9¡±(74mm) |
|
Clutch |
Sliding Ring Gear |
|
Braking action |
Automatic In-The-Drum |
|
Overall dimensions(L X W X H) |
13.4¡± X 4.3¡± X 4.4¡±(340mm X 110mm X 112mm) |
|
Mounting bolt pattern |
120mm*76mm,Ø9 |
|
Weight |
N.W.10kg G.W.12kg |
|
Packing size |
410mmx350mmx210mm 1PC/CTN |
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
9.5(2.9) |
26 |
|
500(228) |
9.2(2.8) |
69 |
|
1500(680) |
7.9(2.4) |
105 |
|
2500(1134) |
6.6(2.0) |
136 |
|
3500(1588) |
4.6(1.4) |
168 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
3500(1588) |
5.6(1.7) |
|
2 |
2320(1052) |
15.1(4.6) |
|
3 |
1975(896) |
19.7(6.0) |
|
4 |
1890(857) |
27.9(8.5) |
|
5 |
1590(721) |
34.4(10.5) |
