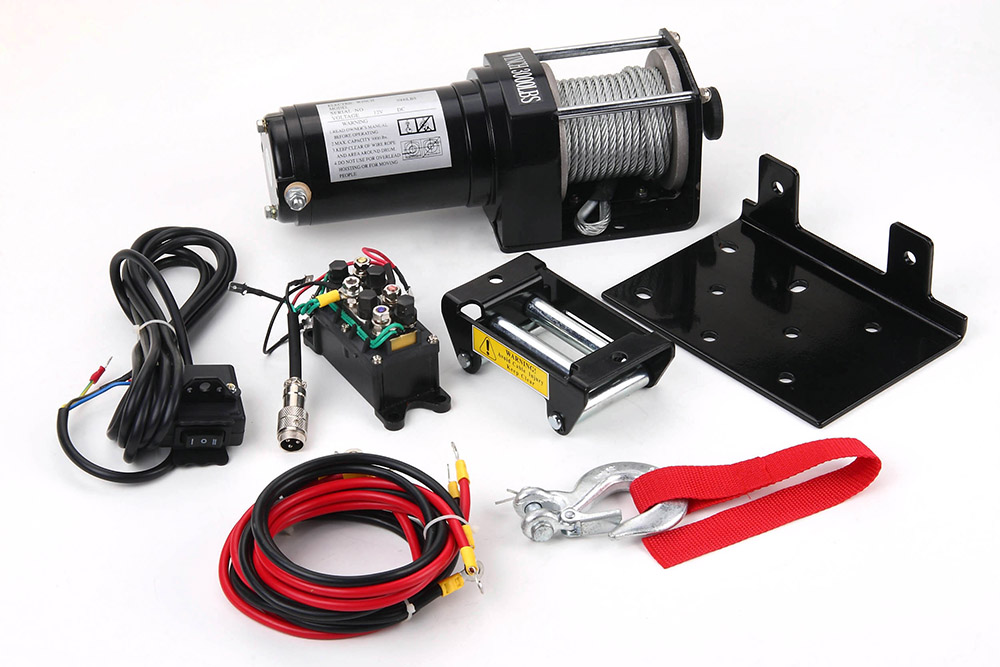

3000LB, WINCH SPECIFICATIONS
|
Rated line pull |
3000lbs(1361kgs) single line |
|
Motor |
Permanent magnet,1.1kw/1.4hp |
|
Gear reduction ratio |
153£º1 |
|
Gear train |
Differential Planetary |
|
Cable (Dia x L) |
Ø4.8mmx10.5m |
|
Drum size (Dia x L) |
Ø1.24¡±(31.5mm) x2.8¡±(72mm) |
|
Braking action |
Automatic In-The-Drum |
|
Overall dimensions(L X W X H) |
11.8¡¯¡¯x4¡¯¡¯x4.1¡¯¡¯(299mm X100mm X105mm) |
|
Mounting bolt pattern |
76mm, Ø8.5 |
|
Weight |
N.W.8kg G.W.10kg |
|
Packing size |
355 x 265 x 170mm 1PC/CTN |
|
CBM |
0.02m3 |
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
10.8(3.3) |
14 |
|
1000(454) |
8.2(2.5) |
60 |
|
2000(907) |
3.6(1.1) |
100 |
|
3000(1360) |
2.6(0.8) |
130 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
3000(1361) |
4.6(1.4) |
|
2 |
2320(1052) |
11.5(3.5) |
|
3 |
1890(858) |
17.1(5.2) |
|
4 |
1590(720) |
24.6(7.5) |
|
5 |
1380(620) |
34.4(10.5) |
