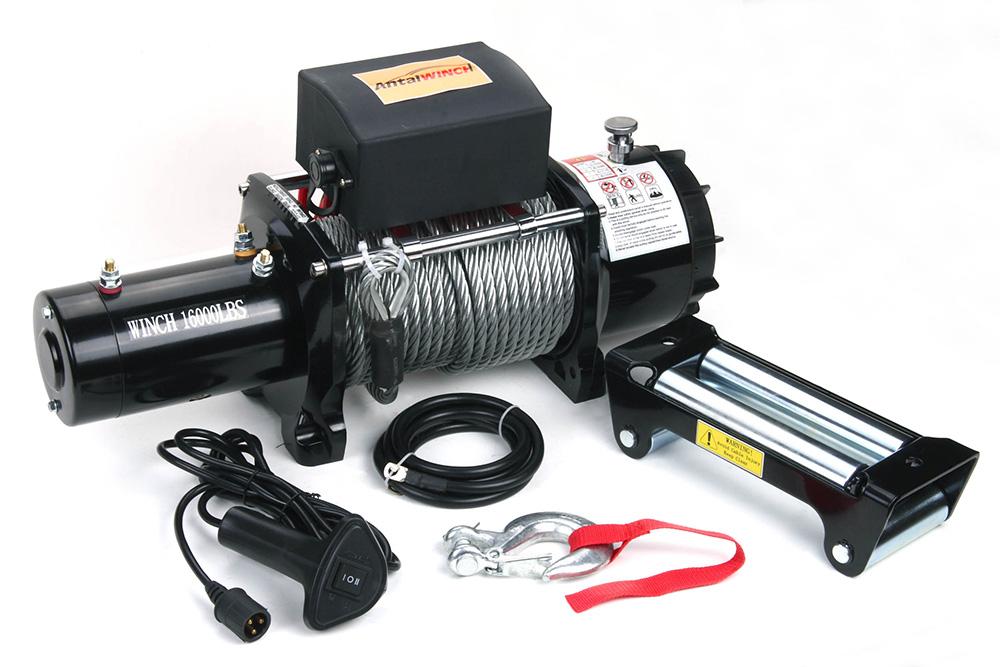

16800LB, WINCH SPECIFICATIONS
|
Rated Line Pull |
16800LBS (7620kgs) single line |
|
Motor |
4.4kw/6.0hp, series wound |
|
Control |
Remote switch, 11.5ft(3.5m)lead |
|
Gear train |
3 Stage Planetary |
|
Gear train ratio |
358:1 |
|
Clutch |
Sliding Ring Gear |
|
Braking Action |
Automatic In-The-Drum |
|
Drum Size |
¦µ2.5"(88)mm¡Á(8.8")221.5mm |
|
Cable |
¦µ10.5mmX26m |
|
Overall Dimensions |
23.9"x4.5"x9"(606mm¡Á190mm¡Á254mm) |
|
Mounting Bolt Pattern |
253mm¡Á114mm ¦µ12 |
|
Weight |
N.W.54kg G.W.56Kg |
|
Packing Size |
655¡Á235¡Á410mm |
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
25.6(7.8) |
90 |
|
4800(2177) |
12.18(3.7) |
245 |
|
7800(3538) |
9.2(2.8) |
300 |
|
10800(4899) |
6.9(2.1) |
360 |
|
13800(6260) |
5.6(1.7) |
400 |
|
16800(7620) |
4.6(1.4) |
450 |
LINE PILL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
16800(7620) |
16(5) |
|
2 |
14100(6396) |
36(11) |
|
3 |
12500(5670) |
62(19) |
|
4 |
9900(4491) |
85(26) |
