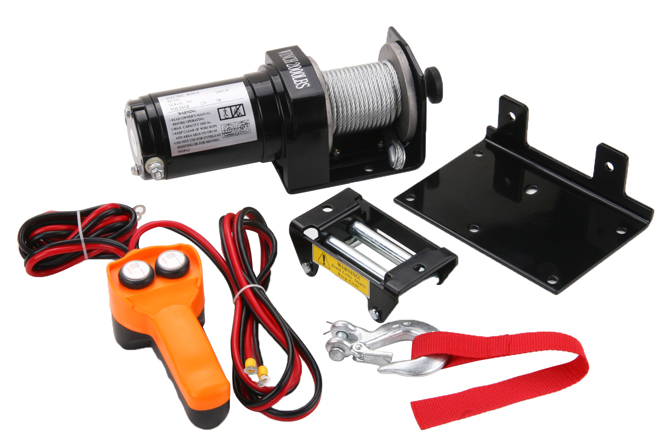

2000LB, WINCH SPECIFICATIONS
|
Rated line pull |
2000lbs(907kgs) single line |
|
Motor |
Permanent magnet,0.7kw/1.0hp |
|
Gear reduction ratio |
150：1 |
|
Gear train |
Differential Planetary |
|
Cable (Dia x L) |
Ø4mmx9.2m |
|
Drum size (Dia x L) |
Ø1.24”(31.5mm) x2.8”(72mm) |
|
Braking action |
Automatic In-The-Drum |
|
Overall dimensions(L X W X H) |
11.3''x4''x4.1''(286mm X100mm X105mm) |
|
Mounting bolt pattern |
76mm, Ø8.5 |
|
Weight |
N.W.7kg G.W.8kg |
|
Packing size |
355 x 265 x 170mm 1PC/CTN |
|
CBM |
0.02m3 |
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
10.5(3.2) |
8 |
|
500(227) |
9.2(2.8) |
30 |
|
1000(454) |
7.2(2.2) |
60 |
|
1500(680) |
5.2(1.6) |
90 |
|
2000(907) |
2.9(0.9) |
120 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
2000(907) |
5.9(1.8) |
|
2 |
1630(740) |
8.2(2.5) |
|
3 |
1380(627) |
13.1(4.0) |
|
4 |
1190(540) |
21.3(6.5) |
|
5 |
1050(477) |
30.0(9.2) |
